  • DPL Male Elbow DOT Fitting

DPL Male Elbow DOT Fitting

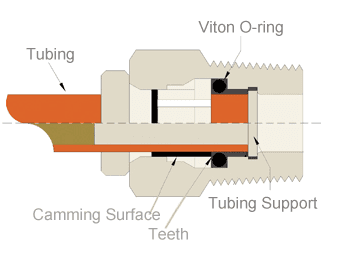

Feature

Made of brass. D.O.T. push in tube fittings meet D.O.T. FMVSS 571.106 Air Brake Performance Requirements and SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.

Simple tube connection and disconnection – no tools required.

Elbows and tees available wtih 360 swivel.

Reusable: Can be connected and disconnected several times

Specification

 Fluid AdmittedAir, Vacuum
 Working Pressure0—1.0MPa | 0—150psi
 Proof Pressure3.0Mpa | 435psi
 Negative Pressure-100Kpa | -29.5 In Hg
 Working Temperature-40—100°C | -40~220°F
 Applicable TubePU / PA
 BodyBrass/ Forged Brass
 Seal, O-ringFKM(Viton)

DOT

Inch Tube ØD

1/8″

5/32″

3/16″

1/4″

5/16″

3/8″

1/2″

UNF

NPT-60°American Standard Taper Pipe Thread

10-32 UNF

1/8 NPT

1/4 NPT

3/8 NPT

1/2 NPT

Model No.

Push-in Tube ΦD(Inch)

Thread (NPT)

DPL 1/8-U10

1/8″

10-32 UNF

DPL 1/8-N01

1/8″

1/8 NPT

DPL 1/8-N02

1/8″

1/4 NPT

DPL 5/32-U10

5/32″

10-32 UNF

DPL 5/32-N01

5/32″

1/8 NPT

DPL 5/32-N02

5/32″

1/4 NPT

DPL 3/16-U10

3/16″

10-32 UNF

DPL 3/16-N01

3/16″

1/8 NPT

DPL 3/16-N02

3/16″

1/4 NPT

DPL 3/16-N03

3/16″

3/8 NPT

DPL 1/4-U10

1/4″

10-32 UNF

DPL 1/4-N01

1/4″

1/8 NPT

DPL 1/4-N02

1/4″

1/4 NPT

DPL 1/4-N03

1/4″

3/8 NPT

DPL 1/4-N04

1/4″

1/2 NPT

DPL 5/16-N01

5/16″

1/8 NPT

DPL 5/16-N02

5/16″

1/4 NPT

DPL 5/16-N03

5/16″

3/8 NPT

DPL 5/16-N04

5/16″

1/2 NPT

DPL 3/8-N01

3/8″

1/8 NPT

DPL 3/8-N02

3/8″

1/4 NPT

DPL 3/8-N03

3/8″

3/8 NPT

DPL 3/8-N04

3/8″

1/2 NPT

DPL 1/2-N01

1/2″

1/8 NPT

DPL 1/2-N02

1/2″

1/4 NPT

DPL 1/2-N03

1/2″

3/8 NPT

DPL 1/2-N04

1/2″

1/2 NPT
