  • ML3 Three Way Socket Quick Coupling

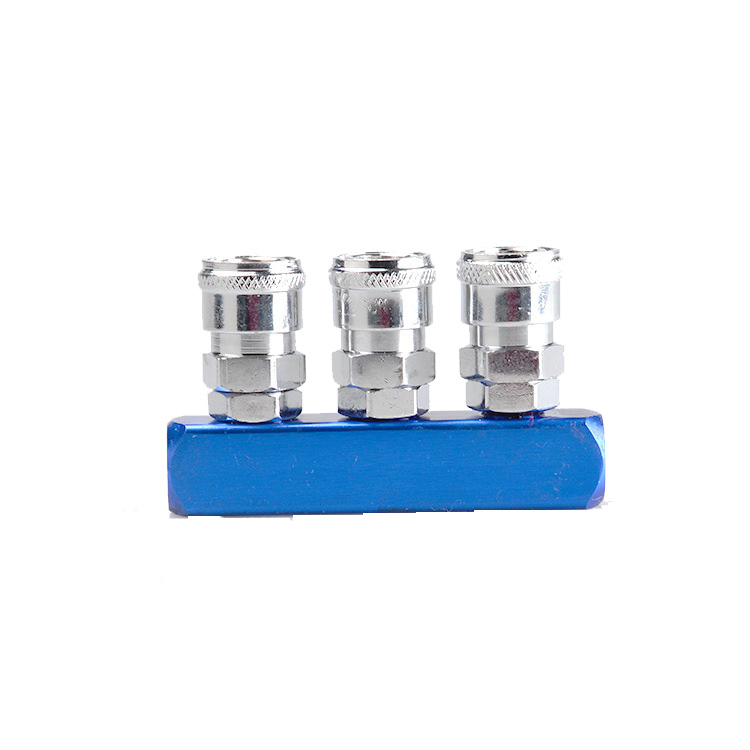

ML3 Three Way Socket Quick Coupling

NITTO Quick Coupling

It allow easy changing of tools or hose connection and disconnection from your facility’s air supply line without shutting down or depressurizing the whole system.

Easy way to boost the efficiency of compressed air system.



Specification



  Fluid AdmittedAir, Oil, Water (no freezing)
 Working Pressure0—1.0MPa | 0—150psi
 Negative Pressure-100Kpa | -29.5 In Hg
 Working Temperature0—60°C | 32~140°F
 Applicable TubePU(Polyurethane) / PA(Nylon)
 BodyChrome Plated Steel



NITTO







NPT Pipe Thread

Code

20

30

40

Thread

NPT1/4

NPT3/8

NPT1/2



Model

Thread

ML3-20

R1/4

ML3-30

R3/8

ML3-40

R1/2
