  • PU Air Hose

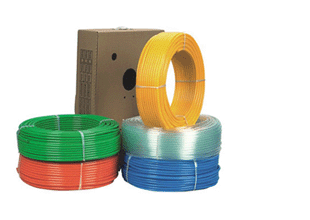

PU Air Hose

Feature



PU tubing include Ether and Ester two types.

Good performance of resistance against oil, high pressure, bad whether.

Available in neutral, black,blue, yellow, green, and red color.

Metric size and Inch size are available.



Specification



 MaterialEther or Ester
 FluidAir, Water
 Burst Pressure3.0MPUB | 435psi
 Operation Pressure 0-1.0MPUB | 0-150psi
 Working Temperature-20°C—60°C

color



Metric Tube ØD

4mm

5mm

6mm

7mm

8mm

9mm

10mm

12mm

14mm

15mm

16mm


Inch Tube ØD

1/8″

5/32″

3/16″

1/4″

5/16″

3/8″

1/2″





 STRAIGHT

Model No.

Tubing Outer ΦD

Tubing Inner ΦD

Standard Length*

PU 3 X 2

3mm

2mm

200m

PU 4 X 2

4mm

2mm

200m

PU 4 X 2.5

4mm

2.5mm

200m

PU 6 X 4

6mm

4mm

100m

PU 8 X 5

8mm

5mm

100m

PU 8 X 6

8mm

6mm

100m

PU 10 X 6.5

10mm

6.5mm

100m

PU 10 X 8

10mm

8mm

100m

PU 12 X 8

12mm

8mm

100m

PU 12 X 9

12mm

9mm

100m

PU 16 X 12

16mm

12mm

100m

Model No.

Tubing Outer ΦD

Tubing Inner ΦD

Standard Length*

PU 1/8

1/8″

0.079″

200m

PU 5/32

5/32″

0.098″

200m

PU 1/4

1/4″

0.167″

200m

PU 5/16

5/16″

0.197″

100m

PU 3/8

3/8″

1/4″

100m

PU 1/2

1/2″

3/8″

100m

PU 1/2

1/2″

0.333″

100m
