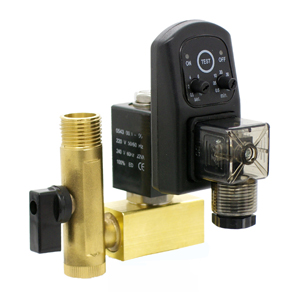

ST-A Series Timer Auto Drain Valve



Feature

The Drain consists of a solid-state timer coupled to a solenoid valve.

Can be used for compressed air system components.
Drain time and interval time can be adjusted.



Specification

Model name

ST

Timer

ST-T

Interval time(OFF time)

0.5-45 minutes

Discharge Time(ON time)

0.5-10 Seconds

Timer Manual TEST switch

Yes, micro switch

Voltage

24-240V AC/DC 50/60Hz

Current Consumption

4mA

Ambient Temperature

-40-60 degree Celsius

Protection grade

IP65

Time shell material

ABS Plastic FR Grade

Timer Connection

DIN43650A

Timer Indicators

On/off

Valve

ST-A

Type

2/2 directing acting valve

Valve port size

1/4 (recommended), 3/8, 1/2

Max working pressure

16 Bar

Ambient Temperature

2-55 degree Celsius

Max medium tempature

90 degree Celsius

Valve

brass,(stainless steel are available)

Protection grade

IP65

Voltage

24-240V AC/DC

Votalge range

+/-10%



Mounting in any position



Yes
