  • PL Male Elbow

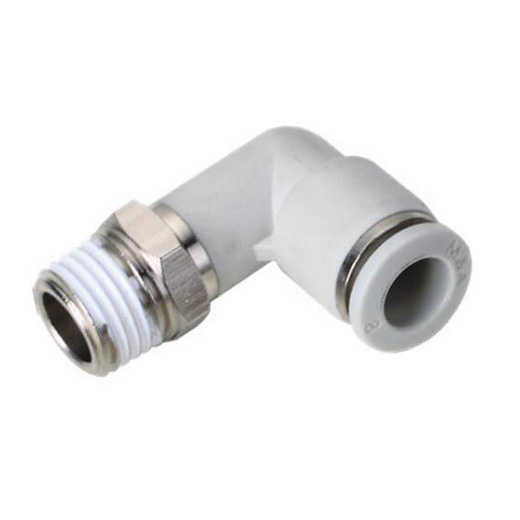

PL Male Elbow

Features

Nickle-Plated brass body and PBT body.

Stainless steel tube gripping claws, collars and release sleeves(collets) offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing.

Oval and round shape of release sleeve are available.

Three colors on the release sleeve, blue, black and gray.


Specifications

Fluid Admitted

Air, Vacuum, Water (no freezing)

Working Pressure

0—1.0MPa | 0—150psi

Proof Pressure

3.0Mpa | 435psi

Negative Pressure

-100Kpa | -29.5 In Hg

Working Temperature

0—60°C | 32~140°F

Applicable Tube

PU / PA / PE / PVC


20170603235458

Metric Tube ØD
4mm5mm6mm7mm8mm9mm10mm12mm14mm15mm16mm
Inch Tube ØD
1/8″5/32″3/16″1/4″5/16″3/8″1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadMetric Thread
R1/8R1/4R3/8R1/2M5x0.8

M6x1

M8x1M10x1M12x1.25M14x1.5M16x1.5M20x1.5



Tube(Metric)-Thread(R)Tube(inch)-Thread(R)Tube(inch)-Thread(NPT)
PL4-01PL10-01PL1/8-01PL5/16-03PL1/8-N01PL1/4-N03
PL4-02PL10-02PL1/8-02PL5/16-04PL1/8-N02PL5/16-N01
PL4-03PL10-03PL5/32-01PL3/8-01PL5/32-U10PL5/16-N02
PL6-M5PL10-04PL5/32-02PL3/8-02PL5/32-N01PL5/16-N03
PL6-M6PL12-01PL3/16-01PL3/8-03PL5/32-N02PL3/8-N01
PL6-01PL12-02PL3/16-02PL3/8-04PL3/16-U10PL3/8-N02
PL6-02PL12-03PL3/16-03PL1/2-02PL3/16-N01PL3/8-N03
PL6-03PL12-04PL1/4-01PL1/2-03PL3/16-N02PL3/8-N04
PL8-01PL16-03PL1/4-02PL1/2-04PL3/16-N03PL1/2-N02
PL8-02PL16-04PL1/4-03
PL1/4-U10PL1/2-N03
PL8-03
PL5/16-01
PL1/4-N01PL1/2-N04
PL8-04
PL5/16-02
PL1/4-N02
