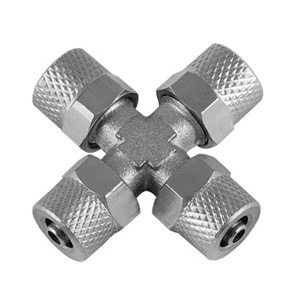

RPZ Union Cross Rapid Fitting

Feature

Reliable way to connect the tube.

Working with high pressure.

Suitable for different tube material.

Specification

Fluid Admitted

Air, Water, Steam

Max Working Pressure

2MPa | 290psi

Working  Temperature

-20°C—120°C | -4°F—248°F

Body

Nickel Plated Brass

Applicable Pipe

PU/PA/FEP/PFA

rapid-fittings

Metric Tube ØD
4mm6mm8mm10mm12mm
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadBSPP, G-55° Parallel Pipe Thread
R1/8R1/4R3/8

R1/2

G1/8

G1/4

G3/8

G1/2

Part No.

Tube ΦD

RPZA 4/2

4/2mm

RPZA 6/4

6/4mm

RPZA 8/6

8/6mm

RPZA 10/8

10/8mm

RPZA 12/10

12/10mm
