  • MSC Brass Speed Controller Push in Fitting

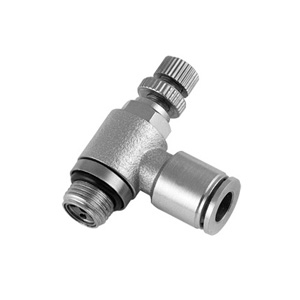

MSC Brass Speed Controller Push in Fitting

Features

Body is made of copper.

Working with high pressure and high temperature.

Suitable for Nylon tube

Specifications

Fluid AdmittedAir, Water, Steam
Max Working Pressure2MPa | 290psi
Working  Temperature-20°C—120°C | -4°F—248°F
BodyNickel Plated Brass
Applicable PipePU/PA/FEP/PFA
O-ringFKM(Viton)

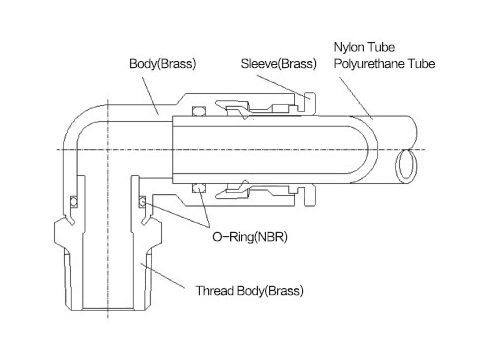

Brass push In Fitting

Metric Tube ØD
4mm5mm6mm7mm8mm9mm10mm12mm14mm15mm16mm
Inch Tube ØD
1/8″5/32″3/16″1/4″5/16″3/8″1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadMetric Thread
R1/8R1/4R3/8R1/2M5x0.8

M6x1

M8x1M10x1M12x1.25M14x1.5M16x1.5M20x1.5

UNF

NPT – 60°American Standard Taper Pipe Thread

BSPP, G – 55° Parallel Pipe Thread

10-32 UNF

1/8 NPT

1/4 NPT

3/8 NPT

1/2 NPT

G1/8

G1/4

G3/8

G1/2



Tube(Metric)

Thread(G)

MSC 4-G01

MSC 10-G01

MSC 4-G02

MSC 10-G02

MSC 4-G03

MSC 10-G03

MSC 6-G01

MSC 10-G04

MSC 6-G02

MSC 12-G02

MSC 6-G03

MSC 12-G03

MSC 8-G01

MSC 12-G04

MSC 8-G02

MSC 16-G03

MSC 8-G03

MSC 16-G04

MSC 8-G04
