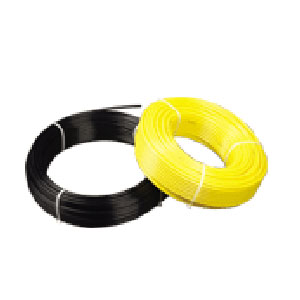

Nylon Tubing

Feature



Nylon Tube include PA6, PA11 and PA12 three types.

Work with high temperature.

Available in metric and imperial sizes. Multiple color for your selection.



 Specification

 MaterialPolyamide (PA6, PA11, PA12)
 FluidAir, Water
 Burst Pressure6.0Mpa | 870psi
 Operation Pressure>2Mpa | >300psi
 Working Temperature-20°C—120°C

color



Metric Tube ØD

4mm

5mm

6mm

7mm

8mm

9mm

10mm

12mm

14mm

15mm

16mm


Inch Tube ØD

1/8″

5/32″

3/16″

1/4″

5/16″

3/8″

1/2″





 STRAIGHT

Model No.

Tubing Outer ΦD

Tubing Inner ΦD

Standard Length*

PAC 3 X 2

3mm

2mm

200m

PAC 4 X 2

4mm

2mm

200m

PAC 4 X 2.5

4mm

2.5mm

200m

PAC 6 X 4

6mm

4mm

100m

PAC 8 X 5

8mm

5mm

100m

PAC 8 X 6

8mm

6mm

100m

PAC 10 X 6.5

10mm

6.5mm

100m

PAC 10 X 8

10mm

8mm

100m

PAC 12 X 8

12mm

8mm

100m

PAC 12 X 9

12mm

9mm

100m

PA 16 X 12

16mm

12mm

100m


Model No.

Tubing Outer ΦD

Tubing Inner ΦD

Standard Length*

PAC 1/8

1/8″

0.079″

200m

PAC 5/32

5/32″

0.098″

200m

PAC 1/4

1/4″

0.167″

200m

PAC 5/16

5/16″

0.197″

100m

PAC 3/8

3/8″

1/4″

100m

PAC 1/2

1/2″

3/8″

100m

PAC 1/2

1/2″

0.333″

100m



COIL

Ref No.Ref No. ofElectrical CoilsNo. TurnsMandrel(mm)Working Length (m)
QS-15QS-15151102.50
QS-18QS-1818902.00
1103.00
QS-20QS-2020902.50
1103.25
QS-22QS-2222902.50
1103.50
QS-24QS-2424903.00
1103.75
QS-26QS-2626903.50
1104.00
QS-28QS-28281104.10
QS-30QS-303011O4.30
