Feature

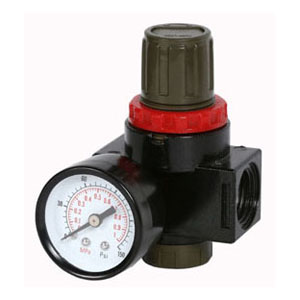

AB series regulator is equivalent AIRTAC series FRL..
Filter out the water molecule and dust, lubricate the oil and regulate the compressed air.
Specification
Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
Medium | Air | ||||
Port size(G) | 1/8 | 1/4 | 1/4 | 3/8 | 1/2 |
Port size for pressure gauge | G1/8 | G1/4 | |||
Max.burst pressure | 15kgf/cm2 | ||||
Max.operating pressure | 9.9kgf/cm2 | ||||
Regulating range | 0.5~8.5kgf/cm2 | ||||
Ambient and media temperature | 5~60 celsius degree | ||||
Body material銆€ | Aluminum Die-casting | ||||
Weight | 0.2kgs | 0.23kgs | |||
