Feature
Compact structure.
Easy install on the confined space.
Large flow and energy saving.
Specification

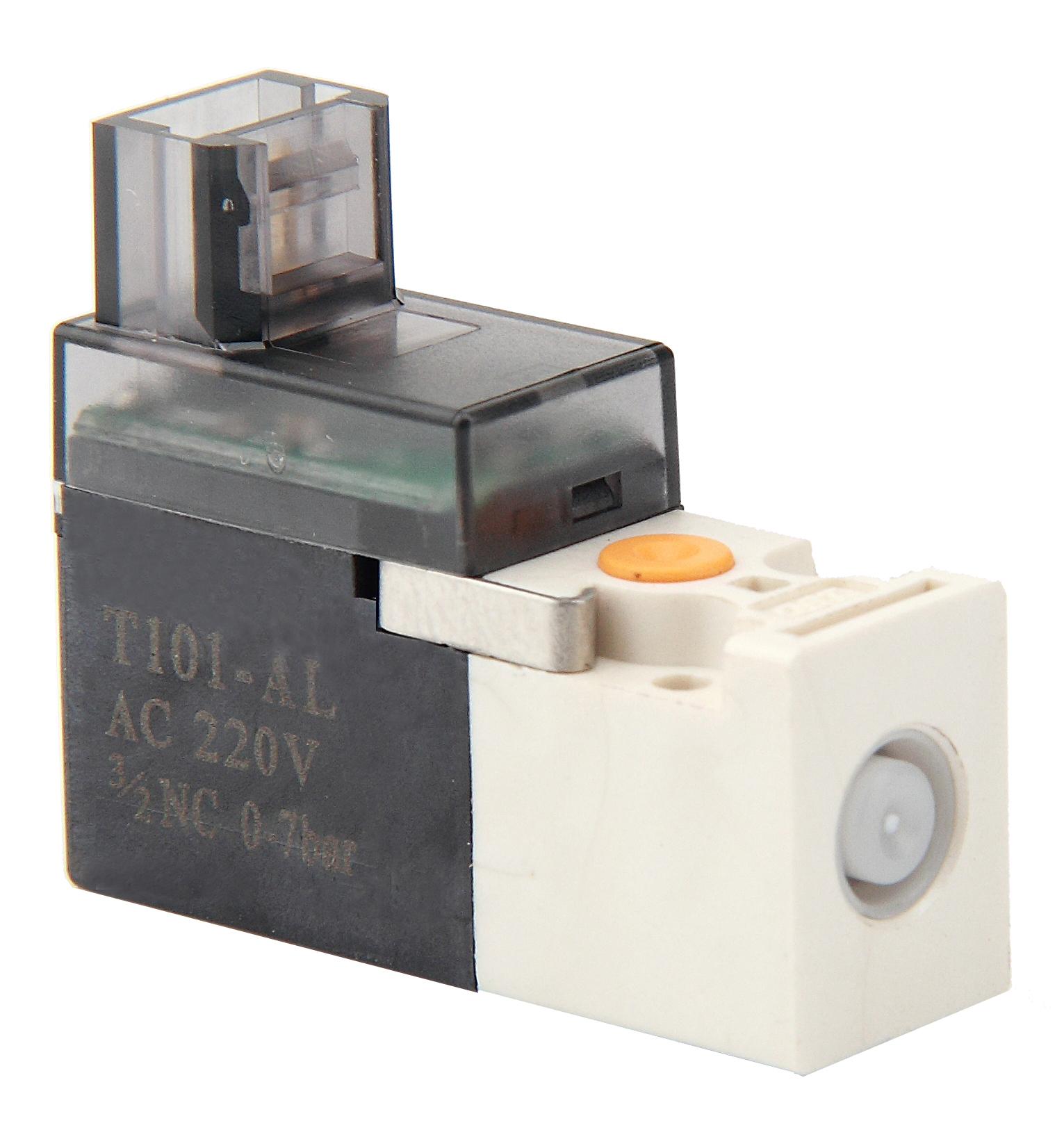

Model | SV10 |
Operation Type | 3/2 |
Working Medium | Filtered Air/Inertgases |
Ambient Temperature | -10~75 ℃ |
Working Pressure | 0-7bar |
Orifice size | φ0.7mm, φ1.0mm, φ1.2mm |
Wiring/Connector | L/M type |
Stand Voltage | DC24V/12V |
Power | 1W/1.2W double power |
Insulation | H Class |
Service life | > 50 million times |
Instruction light | LED |
Operating Frequency | >30Hz |
Operating Voltage Tolerance | +/- 10% |
Response Time | 6-8ms |
Protective Structures | Dust-proof |

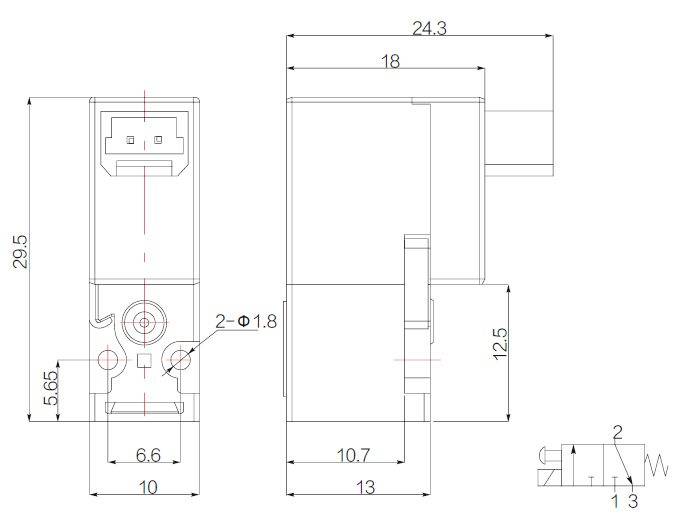

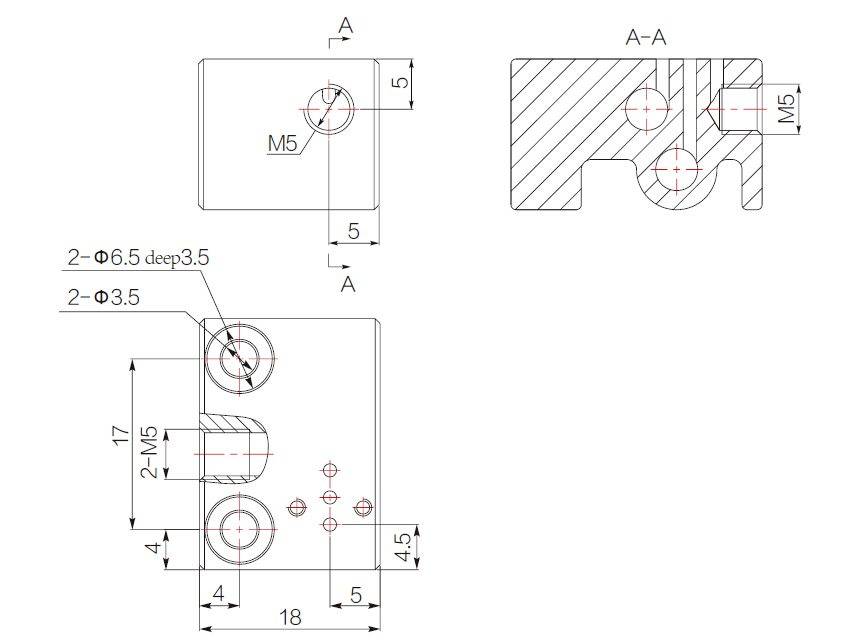

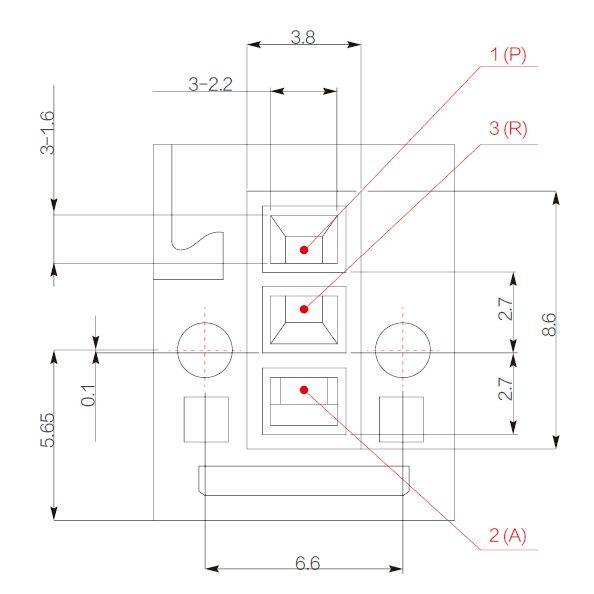

Dimension
