  • SV Series Miniature Directional Solenoid Valve

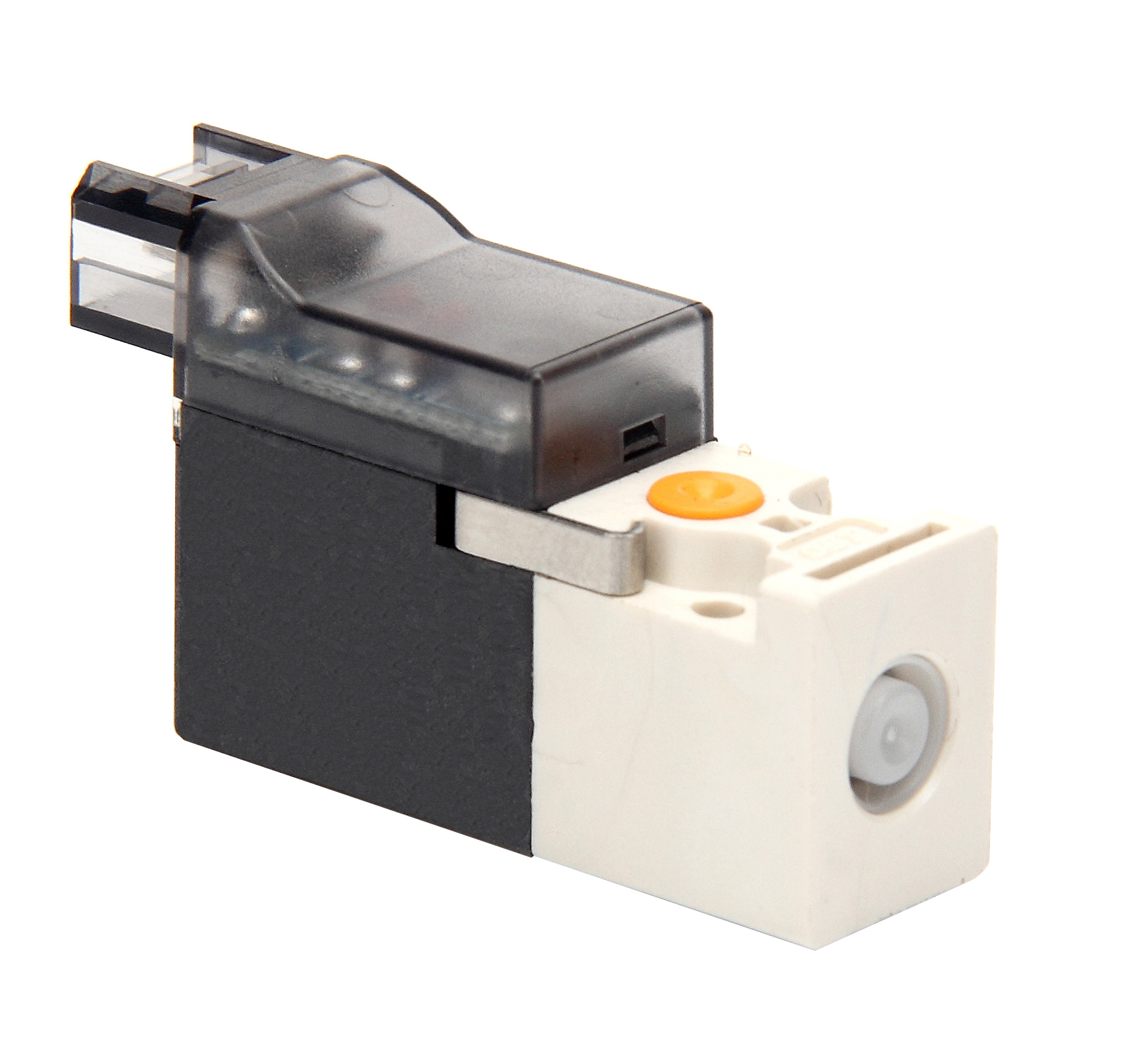

SV Series Miniature Directional Solenoid Valve

Feature



Compact structure.

Easy install on the confined space.

Large flow and energy saving.



Specification



Model

SV10

Operation Type

3/2

Working Medium

Filtered Air/Inertgases

Ambient Temperature

-10~75 ℃

Working Pressure

0-7bar

Orifice size

φ0.7mm, φ1.0mm, φ1.2mm

Wiring/Connector

L/M type

Stand Voltage

DC24V/12V

Power

1W/1.2W  double power

Insulation

H Class

Service life

> 50 million times

Instruction light

LED

Operating Frequency

>30Hz

Operating Voltage Tolerance

+/- 10%

Response Time

6-8ms

Protective Structures

Dust-proof

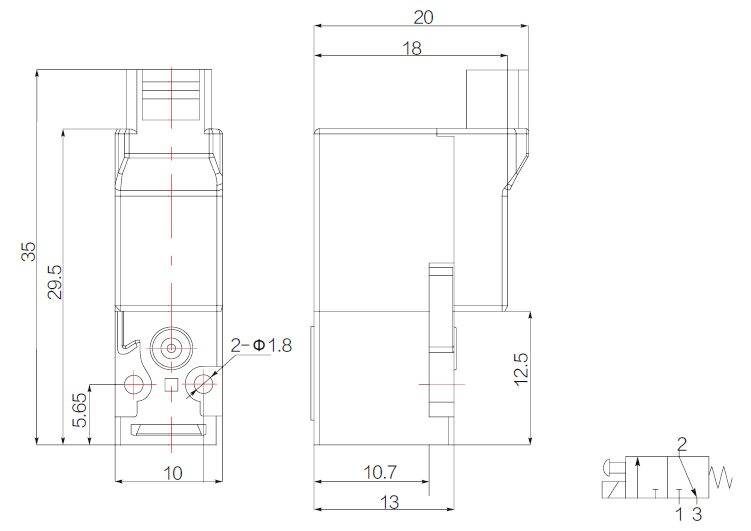

Dimension

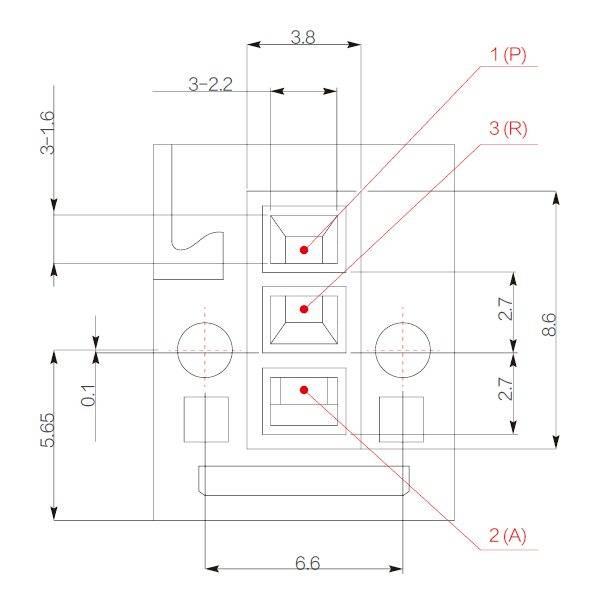

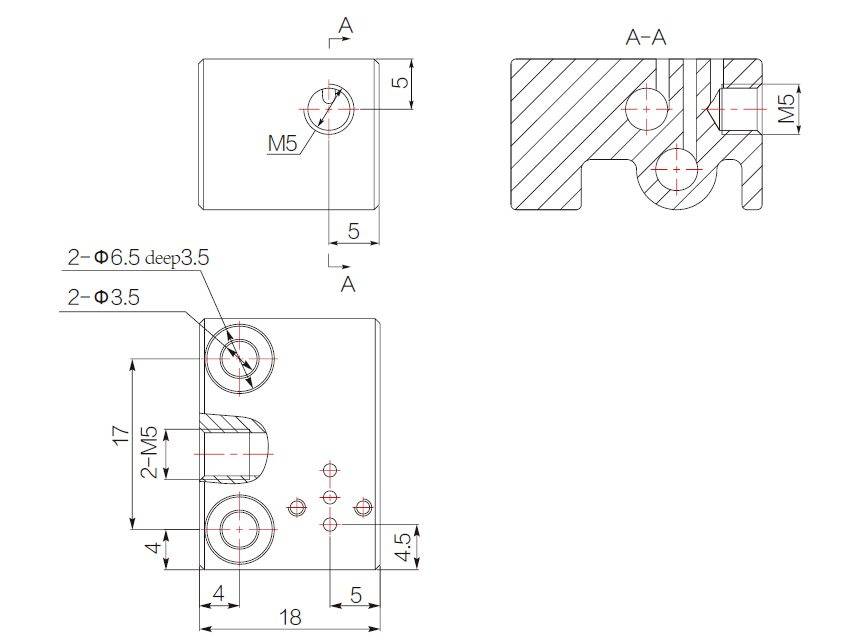

1 manifold drawing installation drawing M drawing
