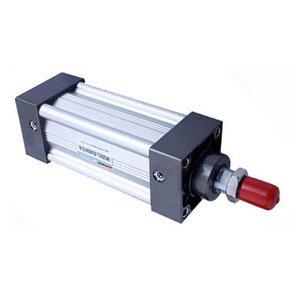

SU Series Pneumatic Cylinder

Feature

Front, real cover and piston are made of aluminum alloy die – they are made by high precision CNC. Barrel is made of anodised aluminum.

Piston rod is made of chromed carbon steel.

Long time service and maintenance free.

Confirm ISO 15552 Standard.



Specification



Bore (mm)

32

40

50

63

80

100

125

160

200

250

320

Motion pattern

Double acting

Working medium

Air

Mountings

Basic FA, FB, CA, CB, LB, TC, TC-M

Working pressure

1~9.0 Kgf/cm2

Proof pressure

13.5 Kgf/cm2

Operating temperature range

0-70 Celsius degree

Operating speed range

50~800 mm/s

Cushion

Adjustable cushioning

Adjustable cushioning stroke

20mm

26mm

45mm

52mm

66mm

Port size

G 1/8

G 1/4

G 3/8

G 1/2

G3/4

G1



Bore (mm)

Standard Stroke

Max stroke

Allowable stroke

32

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500






1000

2000

40

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800



1200

2000

50

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1200

2000

63

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

80

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

100

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

125

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

160

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

200

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

250

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000

320

25

50

75

80

100

125

150

160

175

200

250

300

350

400

450

500

600

700

800

900

1000

1500

2000
