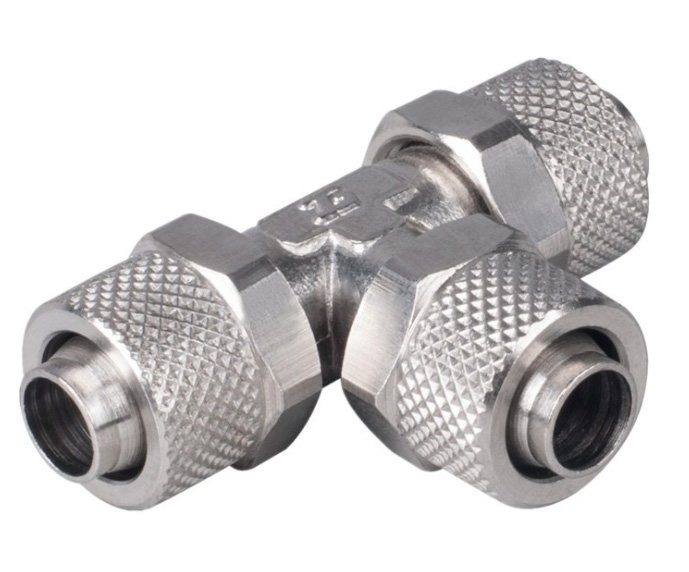

RPE Union Tee Rapid Fitting

Feature

Reliable way to connect the tube.

Working with high pressure.

Suitable for different tube material.

Specification

Fluid Admitted

Air, Water, Steam

Max Working Pressure

2MPa | 290psi

Working  Temperature

-20°C—120°C | -4°F—248°F

Body

Nickel Plated Brass

Applicable Pipe

PU/PA/FEP/PFA

rapid-fittings

Metric Tube ØD
4mm6mm8mm10mm12mm
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadBSPP, G-55° Parallel Pipe Thread
R1/8R1/4R3/8

R1/2

G1/8

G1/4

G3/8

G1/2

Part No.

TubE ΦD

RPE 4/2

4/2mm

RPE 6/4

6/4mm

RPE 8/6

8/6mm

RPE 10/8

10/8mm

RPE 12/10

12/10mm
