  • RPCF Female Straight Rapid Fitting

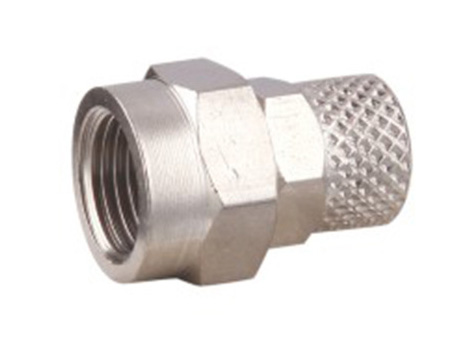

RPCF Female Straight Rapid Fitting

Feature

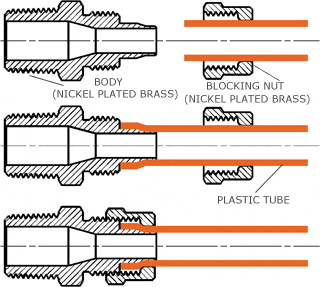

Reliable way to connect the tube.

Working with high pressure.

Suitable for different tube material.

Specification

Fluid Admitted

Air, Water, Steam

Max Working Pressure

2MPa | 290psi

Working  Temperature

-20°C—120°C | -4°F—248°F

Body

Nickel Plated Brass

Applicable Pipe

PU/PA/FEP/PFA

rapid-fittings

Metric Tube ØD
4mm6mm8mm10mm12mm
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe ThreadBSPP, G-55° Parallel Pipe Thread
R1/8R1/4R3/8

R1/2

G1/8

G1/4

G3/8

G1/2

Model No.

Tube ΦD

Thread (PT, R, BSPT)

RPCF 4/2-M5

4/2mm

M5

RPCF 4/2-M6

4/2mm

M6

RPCF 4/2-01

4/2mm

R3/8

RPCF 6/4-M5

6/4mm

M5

RPCF 6/4-M6

6/4mm

M6

RPCF 6/4-01

6/4mm

R1/8

RPCF 6/4-02

6/4mm

R1/4

RPCF 6/4-03

6/4mm

R3/8

RPCF 8/6-01

8/6mm

R1/8

RPCF 8/6-02

8/6mm

R1/4

RPCF 8/6-03

8/6mm

R3/8

RPCF 10/8-01

10/8mm

R1/8

RPCF 10/8-02

10/8mm

R1/4

RPCF 10/8-03

10/8mm

R3/8

RPCF 10/8-04

10/8mm

R1/2

RPCF 12/10-02

12/10mm

R1/4

RPCF 12/10-03

12/10mm

R3/8

RPCF 12/10-04

12/10mm

R1/2
